$9599- Available to order.

Also available in Gloss Beetle Blue

Test Rides: email ryan@switchedonbikes.co.nz

Want to try before you buy? Lease a TernGSD and put a portion of your lease payments towards a new bike. Subject to Availability.

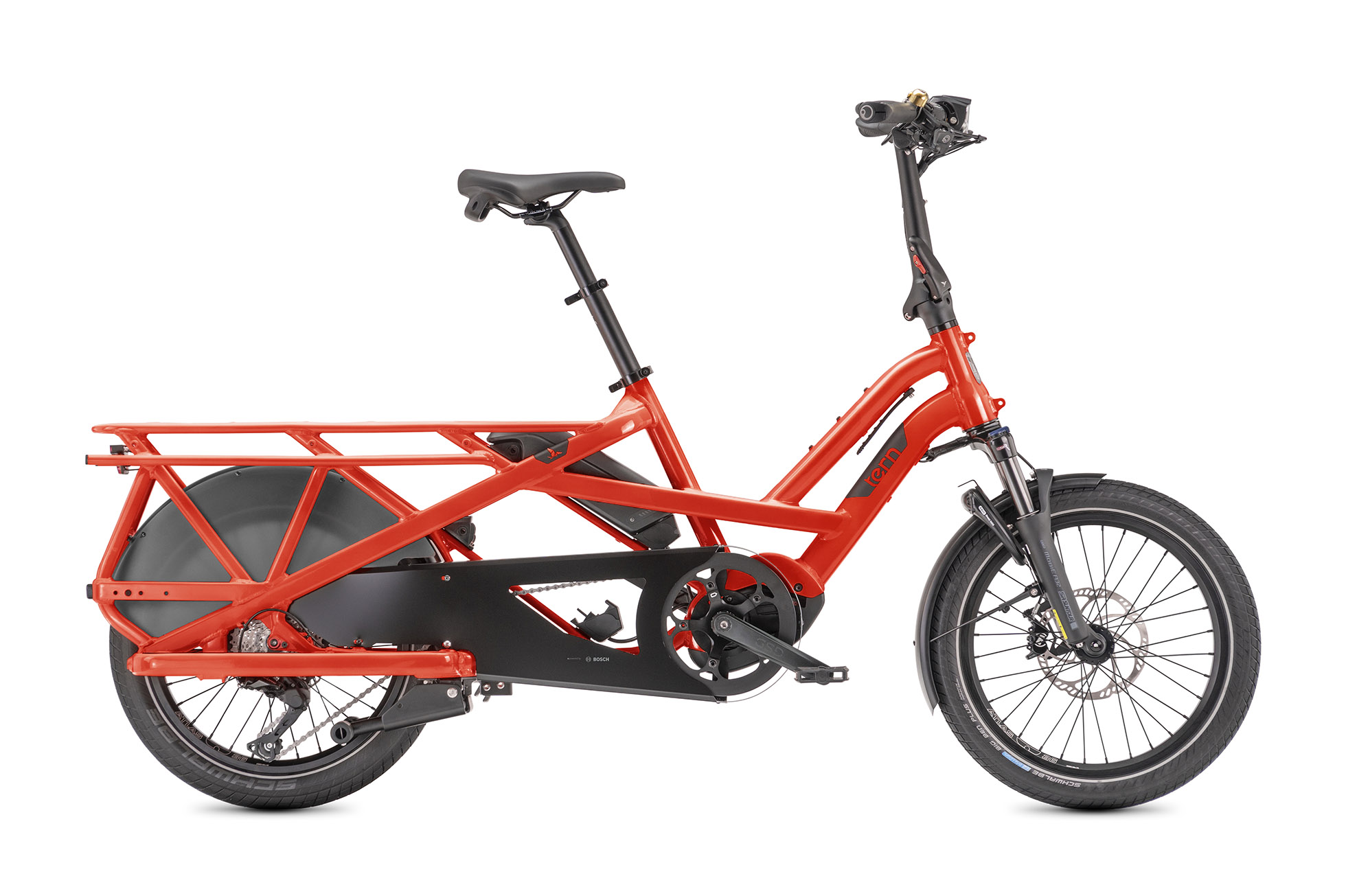

Still Small. Even More Useful.

With a 200 kg Maximum Gross Vehicle Weight, the GSD is ready to replace your car. It’ll let you carry two kids plus groceries, or a whole lot of cargo—but it’s the same length as a regular bike. Built-in dual-battery technology lets you ride all day, while space-saving features like FlatFold and Vertical Parking make the GSD incredibly easy to own and use.

• Bosch® Cargo Line Motor provides up to 85 Nm of torque and 400% support
• Shimano® Deore 1 × 10-speed hub for smooth, efficient shifting
• Super tough Atlas Lockstand™ auto-locks when engaged—just press a button on the handlebars to unlock
• Heavy-duty frame-integrated rear rack and integrated lower decks
• Powerful and responsive Magura® MT5 eSTOP 4-piston hydraulic disc brakes
• Always-on RearStop™ Brake Light helps you safely signal stops
• Upgraded Atlas Wheels™ with custom CNC machined hubs for extra strength and durability
• 500 Wh Battery. Space for an additional battery (not included).

Kit the GSD out with the accessories that suit you and your family. View the range of seating options and more here

One Size Fits Most

SPECIFICATIONS
Rear derailleur: Shimano Deore Shadow+
Max rider weight :120 kg
Stem: Tern Andros, adjustable, forged construction, patented technology
Seatpost: Tern Telescope, 34.9/30.9 mm, 2014-AL
Seatpost clamp: Tern Collar, 6061-AL, 2pc
Shifter cable & housing: Jagwire LEX-SL, slick treatment, alloy ferrules
Front light: Tern Valo Direct, 190 lumens
Luggage socket
Combo Mount
Bottom bracket
Motor integrated
Handlebar: Tern Sweep, 6061-AL, Tern Andros adapted
Grips/bar tape: Ergon
Chainguard: Tern Custom, full chain cover
Suggested rider height: 150 – 195 cm
Distance seatpost to handlebar: 49 – 59 cm
Distance saddle to pedal: 69 – 105 cm
Max gross vehicle weight: 200 kg
Frame: Tern GSD, 6061-AL, patented MultiTruss design, EFBE Tri-Test approved- 200 kg
Fork: Suntour custom for Tern, 1.5″ tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved- 200 kg
Handlepost: Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 290 mm
Headset: Tern Flux Pro Taper, 1.5″, angular contact bearings, Physis integrated
Saddle: Tern GSD by Velo, with rear handle
Front brake: Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads
Brake levers: Magura MT5 e-stop, hydraulic, with brake sensor
Front hub: Tern Atlas, Boost Thru-Axle, Cargo-optimized design, sealed cartridge bearing
Rear hub: Tern Atlas, Boost Thru-Axle, Syntace X-12 standard, Cargo-optimized design
Spokes and nipples: Stainless steel, 13G
Rims: Tern Atlas, ultra wide 36 mm, dual reinforced joint
Tires: F- Schwalbe Big Ben Plus, 55-406, Green Guard puncture protection, Reflex R- Tern x Schwalbe Super Moto-X, 62-406, Green Guard Puncture protection, Reflex
Shifter(s): Shimano Deore, 1 x 10 spd
Crankset: Tern GSD custom, forged 6061-AL DH crankarm
Chain: 10 spd, DHT for eBike, GST corrosion resistant coating
Pedals: Urban with non-slip surface, sealed bearings
Motor: Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 32km/h
Battery: Bosch Dual Battery system, 500 Wh/1000 Wh (extra 500Wh battery not included)
Bell: Pitch Plus, brass
Kickstand: Atlas Lockstand, w/ remote unlock, patented technology
Rear light: RearStop Brake Light, Always on brake light
Fenders: Integrated Wheel Guard, AL6061, w/ Side Skirt
Rack(s): Frame integrated, heavy duty design- Max load weight- 100 kg
Accessory: ABUS, keyed-alike with Bosch battery
Display: Bosch Purion, 4 mode selectable, walk assist
